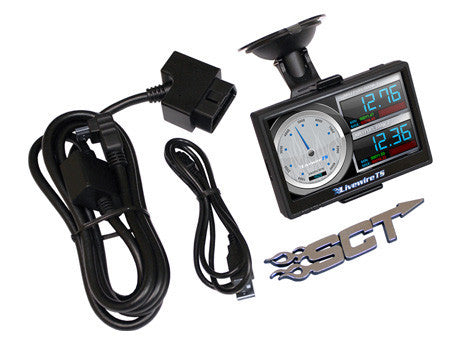

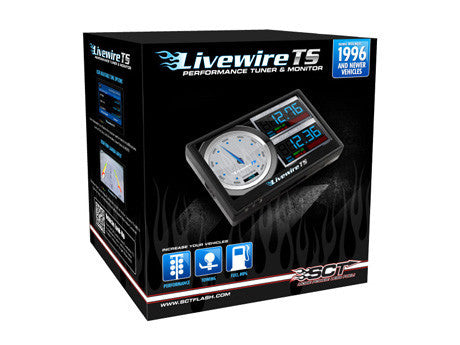

FSWERKS SCT Livewire TS Performance ECU Tuner & Monitor - Ford Focus ST 2013-2017

SKU: FSSCTLWTS

by: SCT

  • $599.00

Low Inventory



From the factory, your vehicle's computer is calibrated for the masses, designed with the average driver in mind, not the performance enthusiast. This not only leaves valuable Horsepower & Torque hidden inside your vehicle, but it also makes for a mediocre driving experience. The Livewire TS unlocks your vehicle's hidden performance by re-calibrating your vehicle's computer for Maximum Horsepower & Torque, Increased Throttle Response, and Firmer Shifts.

To program your vehicle follow a very simple set of on-screen instructions using the touchscreen. To get started simply plug the device into your car's diagnostic port and pick the custom program you wish to load. Once you have selected the program you wish to load, you follow the on-screen instructions and allow the unit a few minutes to flash the new performance file. That's it. YES! It is that easy!

SCT LiveWire TS Flash Device User Adjustable Features:

  • Spark Adjustment
  • Rev Limiters

FSWERKS / SCT programs for the Focus ST Ecoboost come standard with the following:

  • Fueling optimized
  • Ignition timing optimized
  • Boost pressure increased
  • Speed governor raised
  • Rev limiter set to 7,200 RPMs on 2.0L EcoBoost

FSWERKS /SCT programs can also be ordered with the following options:
(Click options to read more about them)

Custom idle
Custom rev. limit
Rear oxygen sensor disabled for race downpipe

Also, please read:
SCT Flasher FAQ's
SCT Flasher Optional Parameters

Other parameters may also be modified to suit your needs. Please call for other custom settings if you don't see what you are looking for here.

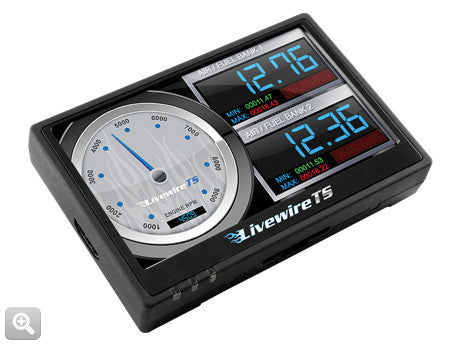

  • Color 4" Touch Screen Display
  • Livewire TS features a full color 4" touch screen display with built-in ambient light sensor for automatic brightness adjustment day & night.
  • Automatic On / Off / Sleep Mode
    Tired of devices that stay on after the ignition is turned off? Livewire TS features both a Sleep & Auto Off mode. 2 minutes after the ignition is turned off, Livewire TS goes into sleep mode, drawing very little power. After 2 days of inactivity, it automatically turns itself off to save your vehicle's battery.

  • Reads & Clears DTC Codes
    Reads and clears diagnostic trouble codes quickly & easily, saving on expensive diagnostic fees.

  • High Speed Data Logging & Monitoring
    Need to monitor your vehicle's engine parameters? No need for a separate monitoring device. View & record your vehicle's PCM data on the Livewire TS.

  • User Selectable Graphics & Gauge Layouts
    Customize the look of your Livewire TS with user selectable themes, colors and gauge layouts.

  • User Adjustable Warning / Alerts
    Easy to configure gauge warning & alerts for critical engine parameters.

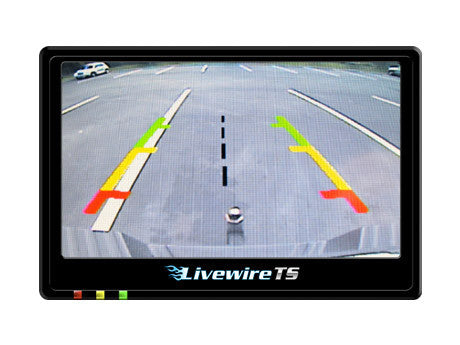

  • Rear View Camera Input
    The Rear View Camera Input Connector is built-in to the Livewire TS OBD-II Cable for easy connection of most aftermarket Rear View Cameras!

  • Built-In Performance Calculator
    - 0-60MPH Performance Test with Estimated HP & TQ
    - ET / MPH Performance Test with 1/8th & 1/4 mile
    - Top Speed Performance Test
    - Braking Performance Test with 60-0MPH ET

  • User Adjustable Tune Options

  • Windshield Mount Included
    No mounting solution required. Livewire TS includes a suction cup style mount for easy mounting on your vehicle's windshield.
    * Adjustable Options vary for each vehicle and are not available on all vehicles

  • Global Spark Modification
    Allows you to Remove Timing Globally

  • Stores Stock Tune
    Stores a true copy of your vehicle's stock file before programming. Used for warranty repairs and unlocking the programmer.

  • Supports Custom Programming and holds up to 10 different tunes

  • Rev / RPM Limiter Neutral
    Allows you to Remove, Increase or Decrease the vehicles Rev / RPM limiter in Neutral

Will SCT's Products Void my new vehicle warranty?
The simple answer is no, unless the manufacturer of the vehicle can prove SCT's product has damaged the vehicle. In fact, the Magnuson-Moss Warranty Act prohibits the manufacturer from doing so. For more information on the Magnuson-Moss Warranty Act, below are a few articles relating to this topic:

Wikipedia Magnuson Moss Act Information
SEMA Action Network Article
Keeping your Mod's Warranty Intact Article by David Vespremi



Fitment:
Ford Focus ST EcoBoost 2.0L 2013-2017
