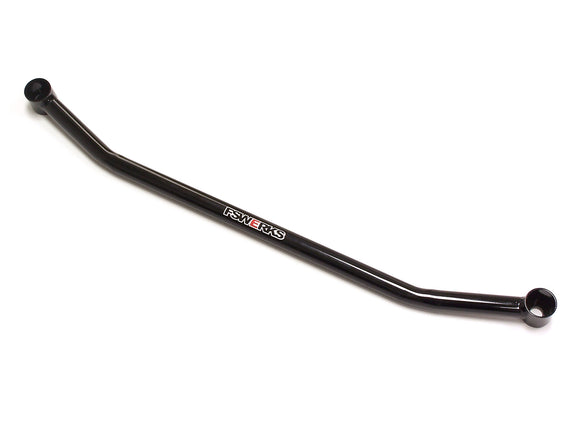

FSWERKS Lower Front Stress Bar - Ford Focus 2000-2011
SKU: FS034KThis Stress Bar is a quick two-point bolt-on installation which mounts to the front of the control arms. This bar is perfect for adding improved stability by reducing subframe flex. Made from 1 Inch heavy wall steel tubing,Β and available in gloss black or silver powdercoated finish.
All bars backed by a LIFETIME warranty against manufacturing defects and workmanship.
Installation Note:
The factory bolts which will secure the stress bar in place are designed to be used only once. However, the original bolts can be reused a few times before new ones are needed.
Torque specs:
New bolts, 89ft lbs + 90 degrees
Stock (reused) bolts, 120ft lbs
Fitment:
Ford Focus SOHC SPI 2.0L 2000 2001 2002 2003 2004
Ford Focus DOHC Zetec 2.0L 2000 2001 2002 2003 2004
Ford Focus Duratec 2.3L 2003 2004
Ford Focus Duratec 2.0L 2005 2006 2007
Ford Focus ST Duratec 2.3L 2005 2006 2007
Ford Focus Duratec 2.0L 2008 2009 2010 2011
Notice:
Does not fit Ford Focus SVT due to header clearance.
Fits without causing any fits
Install was pretty straight forward. Use an adjustable wrench on the cotrol arm nut. Went out and bought some combo wrenches after the install. Will be much easier with correct wrench when having to replace arms in future. Grateful that none of the bolts or nuts were seized after 19 years. Was sure to grease everything with lots of Permatex. Because the rust in the picture is after one Minnesota winter. Had the sockets, breaker bars and torque wrenches. So could work under the car and get things torqued. Just pulled on the tire to get the driver's side hole lined up. Squeezed the arm up in place with my hand. I do notice a difference a difference in the steering with the FSWerks strut and lower braces. I have the VF rear engine mount installed. You can see the red mount in the picture. The bolt-ons have really tightened up the steering. Making for a lot more confidence in the vehicle.
Great product
The lower stress bar mounted real easy to the front control arm took me about 10 minutes once the tires were off to get it installed on my 05 zx3. It helped stiffin up the front end with the help of my massive speed tower strut bar my cornering has gotten more responsive in the corners. Thank you everyone at fswerks for great products keep it up
FSWERKS
Thanks very much for sharing this Nathan :-)
Tied everything together. 08-11 owners: Take your wheels off.
Seemed to tie everything together. Already had an upper strut brace installed and this really helped seem like it tightened up the front as a whole. Constantly driving on snow and ice currently so hard to get a real feel for any handling improvements. Went with the new bolts as well. 08-11 owners really should remove both front wheels to access the 21mm lock nut on the backside of the control arm. Made a world of difference.
Easy Install and quality product
Pretty simple install. I used the new bolt option. Recommend using a high lift while car is under load especially on passenger side. I had trouble trying to reach torque specs with tire in the way. I got it as fat as I could then removed the tire and got the extra 90 degrees.
Fit great with my jbr pipes
Install was a breeze. Reused factory bolts but torqued to spec. Fit with my jbr charge pipes on my 17 ST just had to adjust my coupler. Also noted quality was great and smooth silver finish. Now fswerks send me some apparel lol.
FSWERKS
Looks nice! thanks for the feedback :-)
Awesome!!
Awesome product!! Keeps car flat on turns and stable!!
FSWERKS
Thank you :-)
Amazing Product 100% worth the money
So my cars a very different breed from the most focus guys but still a focus so first a little info 06 zx5 2.3 swap fully built drag setup engine is forged bottom supertech everything in the race ported head custom BC cam with a cer/bb 6766 with a 1.06ar it made 705whp on low boost 31psi it runs 45+ on track all BF mounts FSW control arm bushings and this bar went on easy and immediately as I did a small pull I can tell that I had better traction and way less tq steer input to the wheel I can hold it with one hand with zero effort when prior I had to hold tight to keep it straight so Big Thx Fswerks I love the product and shipping was stupid fast it got here before the shipping Company updated my tracking info I think 2 days and it was Thanksgiving one day .... Absolutely Awesome anyone interested check my IG @Silver_Bullet2.3
This is a must have!
I've had mine for 3yrs now. First thing you will notice a huge difference after putting this on. It makes the steering more predictable & really stiffen up the front subframe. I didn't realize how much it was flexing until I put this on. This with the front strut tower bar, if your lowered its turns so good. It gives you the confidence to speed up in long sweeping turns. So worth every penny.
Lower stress bar with no stress
I was installing my poly infused and greasable ball joints control arms at the same time. I used a washer to prevent scarring the bar when torqued. Still need to get an an alignment and test rip but super excited.
Amazing
This helps so much. With stiffening up the front end. Makes the car feel so much better. It hard to explain. But definitely worth getting. Plus if you have the front strut brace as well. It makes the car turn so much flatter & quickly. Adding strength to the front subframe.
Installed good. Made a difference in the way the car feels in sharp turns
Great Product
I ordered this product and received it 2 days later! Installed it tonight on a 2008 Ford focus se. You will need to take the wheels off to get to the nuts holding the 18 mm bolt in. I used a 7/8 wrench to hold the nut. After it was all said and done I took the car for a drive around some decent corners and wow! What a difference this product makes on cornering! Thank you FSwerks!
Tighter
my car is just a daily driver and this makes the front end feel tighter , get one you will not be disappointed
Awesome Product
Like my title says, Awesome Product! Installed this on my 2007 ZX4 and the first thing I noticed is how happy the chassis is now, especially with have the upper front brace and rear brace. Adding this one really just made the chassis souch better. Great quality product! Fast turn around to getting it shipped out even through the Thankgiving week. Definitely a must have to add on when you have the other two. Highly recommend this to make that super happy.
great seller
fast shipping perfect fit
Still trying
Bar looks great, I'm sure it would bolt right up if I were stock. It doesn't clear my exhaust flange for my downpipe and I will need to modify my flange and the bar to make it work.
Just Right
Did not feel immediate difference in handling until driving hard. Easy install. Wish I had known it is very close to the exhaust flange and can vibrate car at higher rpms.
Thanks
Thanks Thanks Thanks
Subtle
Good quality, I bought one for each of my foci . Not too flashy and not ridiculously stiff. Would recommend if you have to coin!
Stress free
No problems love all the fswerks products I've purchased, only disappointment was not getting the color I wanted
FSWERKS
Sorry we ran out of your desired color as inventory can change quickly... but happy you are happy with the product
