ATP High Flow Charge Air Pipe - Ford Fiesta ST 1.6L Turbo 2014+

SKU: ATP-FIE-004
  • $129.00

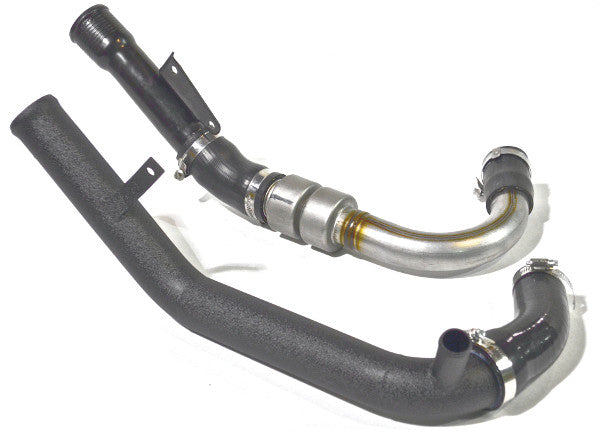

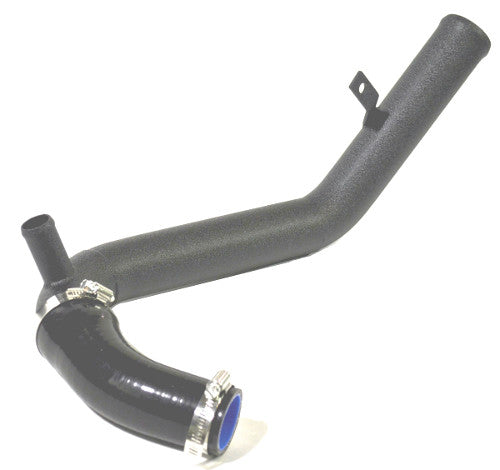

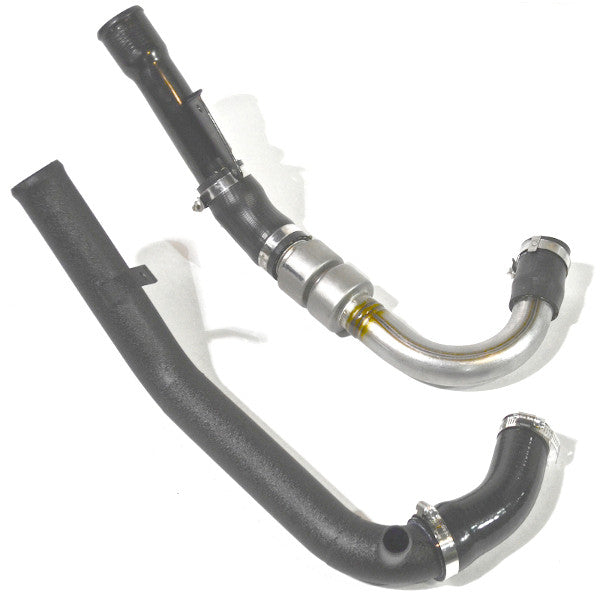

Easy drop-in high flow charge air pipe (hot side), 2014 Fiesta ST Turbo 1.6L.

Constructed in U.S.A. from aluminum, 2 pipe diameter, all mandrel bend elbows, and TIG welds.

Replaces charge pipe bottleneck sections between turbocharger outlet and stock rubber intercooler inlet hose with 2 diameter stainless steel high flow charge air pipe.

Stock turbo compressor outlet diameter is 1.5. Majority aftermarket turbo upgrades utilize 2 diameter compressor outlet. ATP Turbo high flow charge air pipe (2 diameter) is perfect for future big turbo upgrades; and compatible with stock turbo with supplied 1.5 to 2 silicone transition elbow.

ATP Turbo high flow charge air pipe includes 1 side port for upgrade mechanical BOV (Tial, HKS, Greddy, etc.). Alternatively, stock electric diverter valve may be relocated to 1 side port (note, stock electric diverter valve integrated into stock turbo compressor housing). Upgrading stock turbo to Garrett GT/GTX turbo requires a high flowing mechanical or vacuum actuated valve to handle increased flow on throttle lift.

NOTE: ATP Turbo high flow charge air pipe NOT recommended or necessary for Fiesta ST owners without turbo upgrade plans. Stock charge pipe system provides adequate flow for stock turbo and bolt-on performance modifications. The choking point occurs at turbo outlet (1.5 outer diameter and slightly above 1.25 inner diameter). Alternatively, intercooler upgrade will yield better returns and greatly enhances performance from even the stock turbo.

When using ATP Turbo high flow charge pipe and turbo upgrade (stock location), a 2 to 2 45 degree silicone coupler is required; and you are ready to handle big turbo power up to 400WHP.
